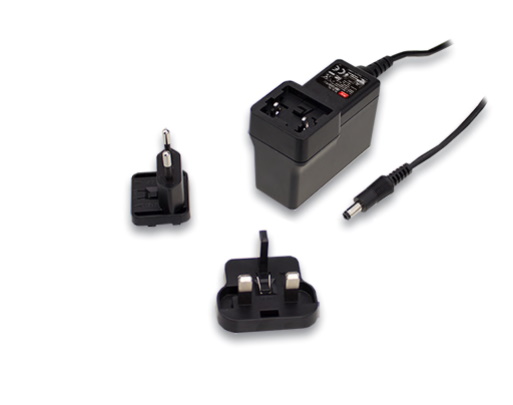

GSV30

  • Weitbereichseingang
  • Leerlaufleistung <0.5W
  • 75.5*32*47.5 mm (L*B*H)
  • Wide input range
  • No load power consumption <0.5W
  • 75.5*32*47.5 mm (L*W*H)
standards

LVD BS EN/EN61347-1, BS EN/EN61347-2-13 approved

Technische Daten
Technical data
field of application LED-lighting technology
design wall plug
operating mode ac/dc
power 30 W
input voltage 1 180 Vac – 264 Vac
input voltage 2 255 Vdc – 373 Vdc
output voltage 12 Vdc | 24 Vdc | 48 Vdc
operating temperature -20 °C ... +50 °C
numbers of output 1
2- or 3-pole input 2
fix or interchangeable input fix input | interchangeable
dimmable not dimmable
constant current or constant voltage constant voltage
manufacturer Mean Well
